metal-ai-skill

A Claude Code skill for GPU debugging and profiling on Apple's Metal ecosystem.

This is the Metal counterpart to renderdoc-skill. While renderdoc-skill provides GPU debugging for Vulkan/D3D/GL via RenderDoc's rdc-cli, metal-ai-skill provides GPU profiling, validation, and shader analysis for Metal apps on macOS via Apple's native toolchain.

What It Does

Teaches Claude Code how to:

• Profile Metal GPU performance using xctrace (Metal System Trace) on macOS and iOS devices
• Export GPU profiling data as parseable XML (driver events, counters, timelines)
• Validate Metal API usage and shader execution with validation layers
• Monitor real-time GPU performance via Metal Performance HUD
• Compile and validate Metal shaders from the command line
• Capture Metal frames to .gputrace for Xcode debugging
• Debug Vulkan apps on macOS via MoltenVK

Quick Setup

1. Prerequisites

• macOS with Metal-capable GPU (Apple Silicon or AMD)
• Full Xcode installed (not just Command Line Tools)
• For Vulkan apps: MoltenVK
• For iOS profiling: physical device connected via USB, device trusted

Verify your setup:

xcode-select -p                     # Should show Xcode.app path
xcrun xctrace version               # Should print version
xcrun -sdk macosx metal --version   # Should print Metal compiler version

2. Install the Skill

Copy the .claude/ directory into your project root:

# Clone
git clone https://github.com/rudybear/metal-ai-skill.git

# Copy skill into your project
cp -r metal-ai-skill/.claude /path/to/your/project/

Or add as a git submodule:

cd /path/to/your/project
git submodule add https://github.com/rudybear/metal-ai-skill.git .metal-ai
cp -r .metal-ai/.claude .

3. Customize CLAUDE.md

Edit CLAUDE.md in your project root with your app-specific details (executable path, shader locations, debug markers).

MCP Server (Alternative)

Instead of the Claude Code skill, you can use the MCP server for structured tool access:

pip install -r requirements-mcp.txt
claude mcp add metal-tools -- python /path/to/metal-ai-skill/mcp_server/server.py

This registers 9 tools (metal_doctor, metal_trace, metal_parse_trace, metal_capture, metal_shader, metal_validate, metal_hud, metal_screenshot, metal_command), 2 resources (metal://traces, metal://captures), and 7 debugging prompts.

Usage

Once installed, Claude Code will automatically use this skill when you ask about Metal GPU debugging. Example prompts:

• "Profile my Metal app for 10 seconds and show me what's slow"
• "Check this shader for compilation errors"
• "Run my app with Metal validation and show me any API errors"
• "Capture a frame of my Vulkan app on macOS for debugging"
• "Compare GPU performance before and after my shader change"
• "Monitor real-time FPS and GPU time while I test"

Architecture

metal-ai-skill/
├── .claude/
│   └── skills/
│       └── metal-gpu-debug/
│           ├── SKILL.md                          # Main skill definition
│           └── references/
│               ├── xctrace-quick-ref.md          # xctrace command reference
│               └── debugging-recipes.md          # Extended debugging workflows
├── mcp_server/                                   # MCP server (alternative integration)
│   ├── __init__.py
│   ├── server.py                                 # FastMCP server — 9 tools, 2 resources, 7 prompts
│   ├── metal_runner.py                           # Async subprocess wrapper
│   └── recipes.py                                # Debugging recipe strings for prompts
├── examples/
│   ├── buggy-renderer/                           # 10-bug compute shader demo
│   │   ├── main.swift                            # Headless particle simulation
│   │   ├── Shaders.metal                         # 5 shader bugs + 5 host bugs
│   │   └── build_and_run.sh
│   └── visual-demo/                              # 4-bug rendering demo
│       ├── main.swift                            # Windowed cube renderer with geometry bug
│       ├── Shaders.metal                         # 3 shader bugs (BGR, Y-flip, alpha=0)
│       └── build_and_run.sh
├── CLAUDE.md                                     # Project context for Claude Code
├── capture_frame.swift                           # Example: programmatic frame capture
├── parse_trace.py                                # Parse xctrace XML exports to TSV/JSON/CSV
├── parse_gputrace.py                             # Inspect .gputrace buffer/texture data from CLI
├── requirements-mcp.txt                          # MCP server dependencies
├── LICENSE
└── README.md

Key Differences from renderdoc-skill

Feature	renderdoc-skill	metal-ai-skill
Primary tool	rdc-cli (66 commands)	xctrace + env vars + xcrun metal
APIs	Vulkan, D3D11/12, OpenGL	Metal (+ Vulkan via MoltenVK)
Platform	Windows, Linux, Android	macOS, iOS/iPadOS (via USB)
Capture format	.rdc (full CLI access)	.gputrace (Xcode GUI + CLI buffer inspection)
CLI inspection	Full (draws, pipeline, pixels, shaders)	Profiling + validation + buffer data (via labels)
Shader debugging	Step-through from CLI	Compile-time validation only (runtime in Xcode)
GPU profiling	GPU counters (limited)	Full xctrace + Metal Counters API
Validation	API validation flag	API + Shader validation layers
Performance HUD	N/A	Built-in MTL_HUD_ENABLED

The fundamental difference: RenderDoc gives you full post-mortem capture inspection from CLI. Metal's tooling splits between CLI (profiling, validation, shader compilation) and Xcode GUI (draw call stepping, shader debugging, pixel history). This skill uses an autonomous debugging workflow that gathers signal from multiple sources in parallel (screenshots, .gputrace, shader compilation, source code) and falls back gracefully when buffer data isn't available from programmatic captures.

Examples

Profile GPU performance

# Claude Code will run:
xcrun xctrace record --template 'Metal System Trace' --time-limit 10s \
  --output traces/profile.trace --launch -- ./MyApp
xcrun xctrace export --input traces/profile.trace --toc
xcrun xctrace export --input traces/profile.trace --output traces/analysis/events.xml \
  --xpath '/trace-toc/run[@number="1"]/data/table[@schema="metal-driver-event-intervals"]'

Validate Metal API usage

# Claude Code will run:
MTL_DEBUG_LAYER=1 MTL_SHADER_VALIDATION=1 ./MyApp 2>&1 | tee validation.log

Compile and check shaders

# Claude Code will run:
xcrun -sdk macosx metal -c -Weverything -Werror Shaders.metal -o /dev/null

Inspect buffer data from .gputrace captures

# Claude Code captures a frame, then reads buffer contents by label:
METAL_CAPTURE_ENABLED=1 ./MyApp

python3 parse_gputrace.py capture.gputrace
# Resources:
#   MTLBuffer-10-0   491,520 bytes  → Particle Buffer
#   MTLBuffer-14-0   163,840 bytes  → Color Output Buffer

python3 parse_gputrace.py capture.gputrace --buffer "Color Output" --layout float4 --index 100
# [100] (0.5909, 0.7278, 0.5450, 1.0000)

Visual Demo

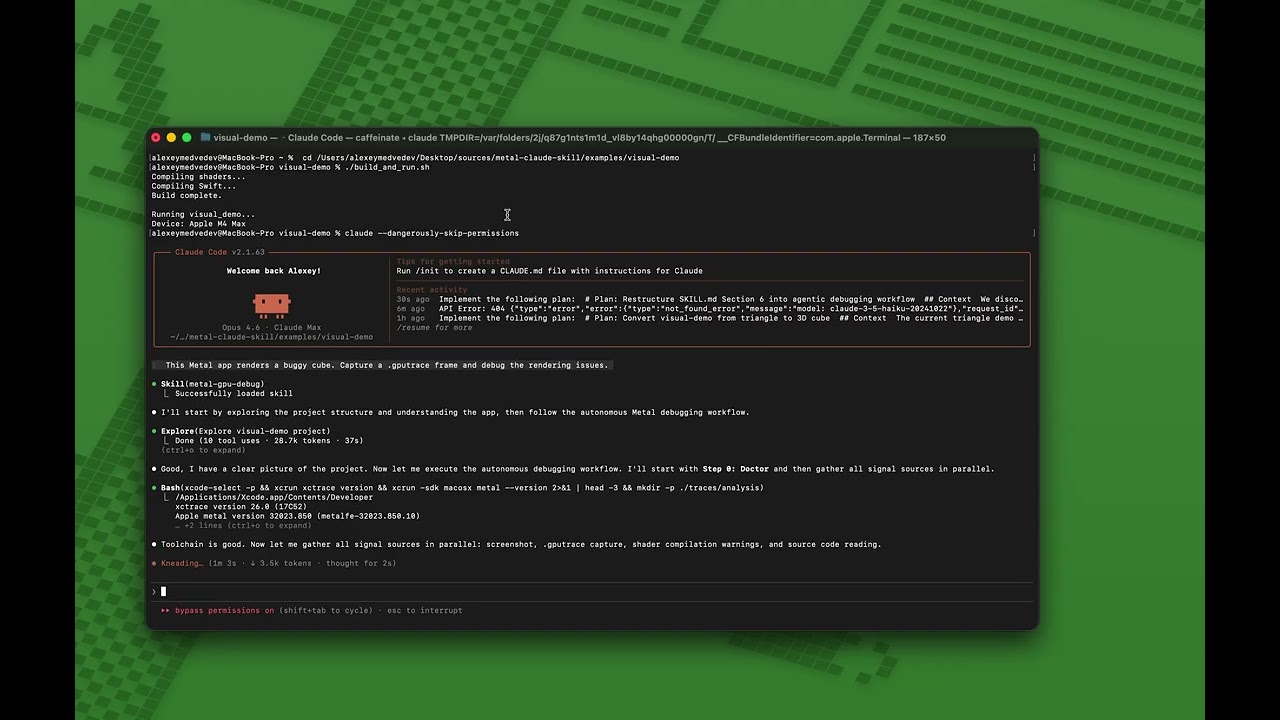

The examples/visual-demo/ contains a broken Metal cube renderer with 4 intentional bugs that produce visibly wrong output. It demonstrates Claude Code's autonomous debugging workflow — screenshot, .gputrace capture, shader compilation, source code analysis, and fix/verify loop.

Before (buggy) — distorted geometry, flipped, wrong colors:

How Claude fixes it:

cd examples/visual-demo
./build_and_run.sh --screenshot  # Render + save output.png

# Claude gathers signal in parallel:
#   A. Reads output.png — sees distorted, wrong-colored cube
#   B. Captures .gputrace — lists resources and shader functions
#   C. Compiles shaders with -Weverything
#   D. Reads source code (.metal + Swift)

# Claude diagnoses 4 bugs:
#   Bug 1: Front face vertices collapsed to (0,0,s) instead of (s,s,s)
#   Bug 2: Y axis flipped after MVP (out.position.y *= -1.0)
#   Bug 3: R/B channels swapped in fragment shader
#   Bug 4: Alpha multiplied by 0.0 (transparent)

# Claude fixes all 4, rebuilds, verifies output.png is correct

After (fixed) — properly oriented cube with correct face colors:

See also examples/buggy-renderer/ for a more complex 10-bug compute shader demo.

License

MIT — see LICENSE.
