add doc for generate by template.
1 parent 1c233c7 commit a0485ce

3 files changed

Lines changed: 153 additions & 1 deletion

File tree

‎docs/en/_sidebar.md‎

Lines changed: 1 addition & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -14,6 +14,7 @@
1414
* [Formatter](en/formatter.md)
1515
* [SqlErrorFix](en/sqlred.md)
1616
* [typeSafeSql](en/typeSafe.md)
17+
* [generateByTemplate](en/generateByTemplate.md)
1718
* [Java class generate create table sql](en/javaToCrud.md)
1819
* [Sql to Mybatis xml and java statemetn](en/sqlToMybatis.md)
1920
* [Install and activate](en/install.md)

‎docs/en/generateByTemplate.md‎

Lines changed: 151 additions & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -0,0 +1,151 @@
1+
## Using Templates to Generate Code
2+
3+
### Starting from version 2025.1.1, EasyCode-MybatisCodeHelper will switch to a freemium model. Only template code hint functionality will require payment; other features such as preview and code generation will remain free.
4+
5+
### For users with customization needs, such as adding company-specific comments or using internal frameworks, template-based code generation is recommended.
6+
7+
### Install EasyCodeMybatisCodeHelper(1.4.0) plugin for template generation [Download Link](https://plugins.jetbrains.com/plugin/13847-easycode-mybatiscodehelper)
8+
9+
## Features: template code hints, real-time preview, direct IDEA editor template operations, multiple group configuration, and direct code generation from templates. The most convenient template code generation plugin.
10+
11+
Video tutorial: https://www.bilibili.com/video/BV19C4y1Y7RN
12+
13+
GitHub: https://github.com/gejun123456/EasyCodeMybatisCodeHelperTemplates - download template files
14+
Copy template files directly to your project's easyCode directory or Scratches And Consoles' /extensions/EasyCode for code generation. Includes code hints, real-time preview, and direct template editing in IDEA editor.
15+
16+

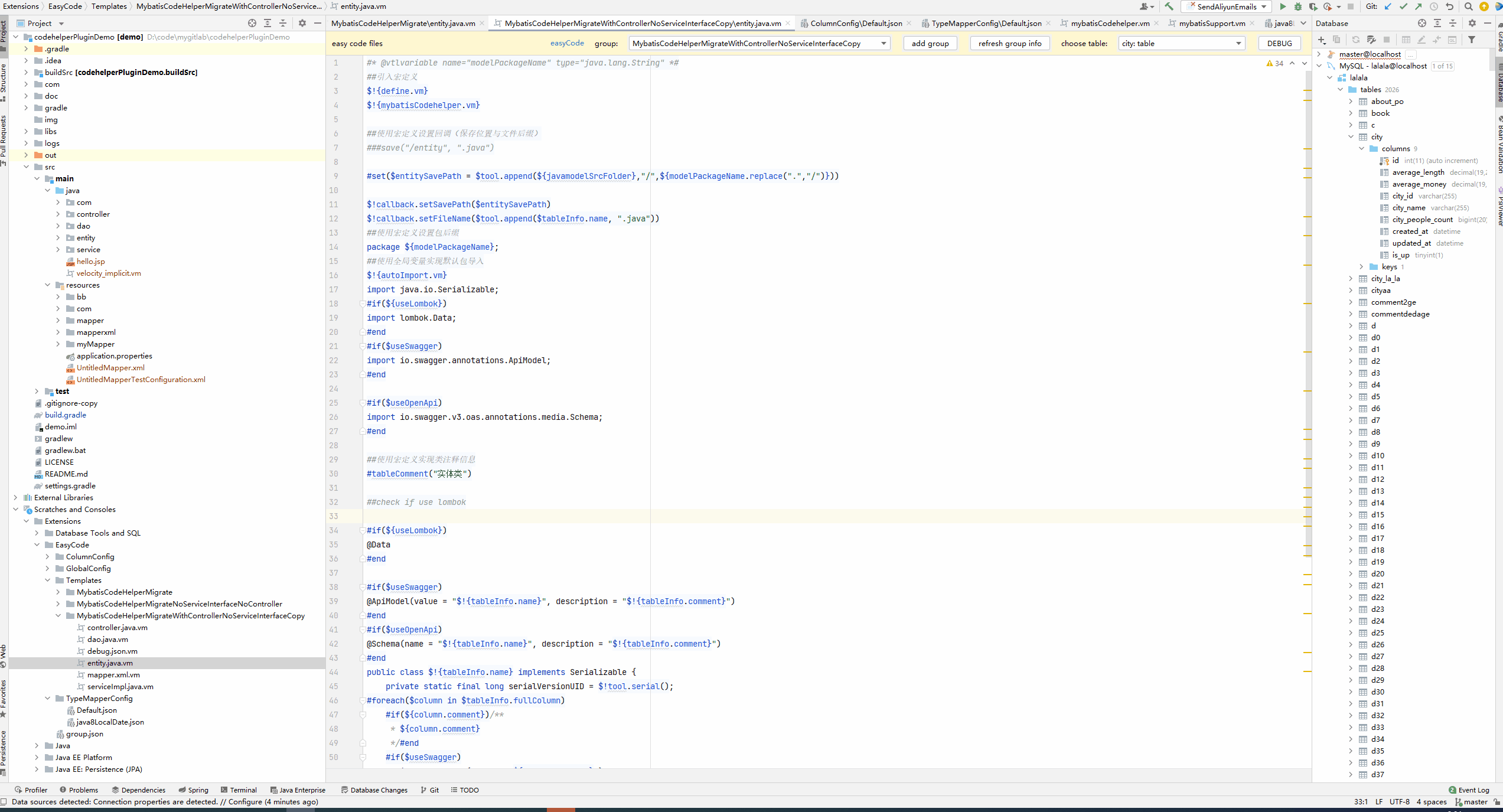

Template preview:
17+
![scratchGenerate](https://images.brucege.com/scrachGenerate.gif)
18+
19+

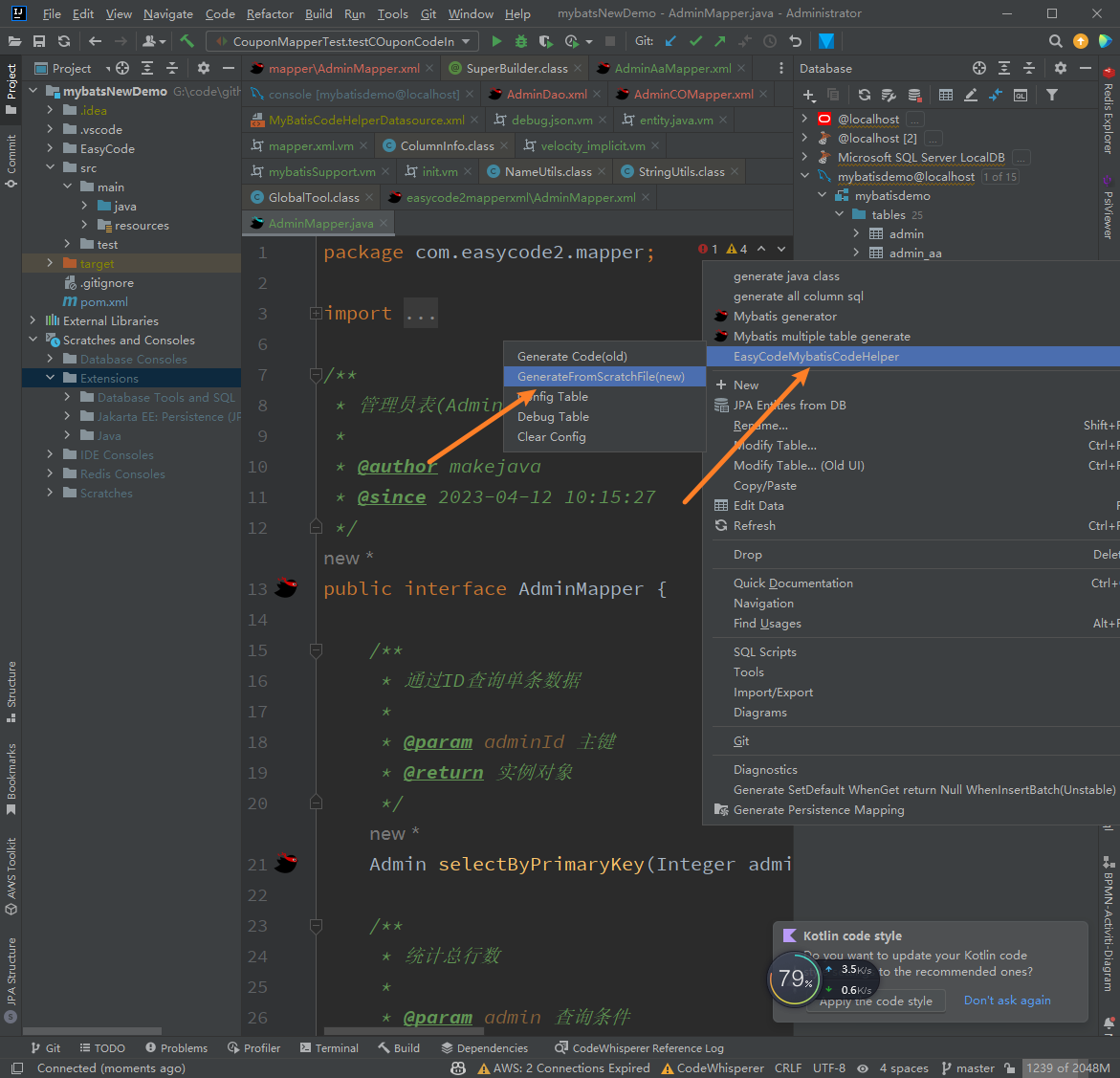

Generate code from database tables in IDEA (multiple table selection supported):
20+
![generateFromScratch](https://images.brucege.com/generateFromScratch.png)
21+
22+
Currently supports code generation from either the project's easyCode directory or the scratch directory's /extensions/EasyCode
23+
24+
The project's easyCode directory is recommended as it can be version controlled with git and shared with teammates to prevent loss.
25+
26+
27+
### What is group.json for?
28+
group.json configures relationships between templates, globalConfig, and typeMapper through group names in JSON. A project can have multiple generation groups.
29+
30+
### New to Template Writing?
31+
Templates use Velocity syntax. Documentation: https://velocity.apache.org/. Contact me for template-related issues.
32+
33+
## Upgrade Notice
34+
Due to storage changes in version 1.2.8, when upgrading from pre-1.2.7 versions, export templates to JSON first, then upgrade and import the JSON.
35+
36+
## Template-Generated Code Has Joined Columns Without Commas
37+
In IDEA 2023.1's Velocity upgrade, change $velocityHasNext to $foreach.hasNext
38+
39+
### Empty projectPath
40+
For projects with parallel modules without a main project, set projectPath in mybatisCodeHelper.vm:
41+
```velocity
42+
#set($projectPath="D:/workspace/idea/XXModule")
43+
```
44+
45+
## GenerateCode(old) vs GenerateFromEasyCodeFolder(new)
46+
GenerateCode(old) uses settings-configured templates and configurations.
47+
GenerateFromEasyCodeFolder(new) generates from easyCode folder templates.
48+
GenerateFromEasyCodeFolder(new) is recommended as it provides code hints, real-time preview, direct editing, and git integration.
49+
50+
## Template Code Hints
51+
Click "Add dependency for code completion" at template top for automatic dependency addition.
52+
This enables code hints while editing. Remove dependency when done.
53+
54+
## Why Package Names and Paths in mybatisCodeHelper.vm?
55+
This approach facilitates git version control and team sharing without individual configuration.
56+
Future updates will enable template-file comparison and add auto-suggestions for paths and package names.
57+
58+
## Template Examples
59+
#### Remove Table Name Prefix
60+
Edit mybatisCodeHelper.vm in globalconfig:
61+
```velocity
62+
#if($tableInfo.obj.name.startsWith("table_"))
63+
$!tableInfo.setName($tableInfo.name.substring(5))
64+
#end
65+
```
66+
67+
Or define a variable:
68+
```velocity
69+
#set($entityName=$tableInfo.name)
70+
#if($tableInfo.obj.name.startsWith("table_"))
71+
#set($entityName=$tableInfo.name.substring(5))
72+
#end
73+
```
74+
Use ${entityName} in templates. Multiple templates can reference this variable.
75+
76+
#### Add Entity Class Suffix
77+
```velocity
78+
#set($entityName=$tableInfo.name)
79+
#set($entityName = $tool.append($entityName,'Entity'))
80+
```
81+
Use ${entityName} in templates.
82+
83+
#### Remove Field Prefix
84+
Edit mybatisCodeHelper.vm in globalconfig:
85+
```velocity
86+
#set($removeColumnPrefix="f_")
87+
#foreach($column in $tableInfo.fullColumn)
88+
#if($column.obj.name.startsWith($removeColumnPrefix))
89+
$!column.setName($tool.firstLowerCase($column.getName().substring(1)))
90+
#end
91+
#end
92+
```
93+
94+
#### Remove Specific Insert Columns
95+
Edit your XML template (e.g., insertBatch):
96+
```xml
97+
#set($insertSkipFields = ["create_time","update_time"])
98+
<insert id="insertBatch" keyProperty="$!pk.name" useGeneratedKeys="true">
99+
insert into $!{tableInfo.obj.name}
100+
(
101+
#foreach($column in $tableInfo.otherColumn)
102+
#if($insertSkipFields.contains($column.obj.name))
103+
#elseif($foreach.hasNext)
104+
$!column.obj.name,
105+
#else
106+
$!column.obj.name
107+
#end#end
108+
)
109+
values
110+
<foreach collection="entities" item="entity" separator=",">
111+
(
112+
#foreach($column in $tableInfo.otherColumn)
113+
#if($insertSkipFields.contains($column.obj.name))
114+
#elseif($foreach.hasNext)
115+
#{entity.$!{column.name}},
116+
#else
117+
#{entity.$!{column.name}}
118+
#end#end
119+
)
120+
</foreach>
121+
</insert>
122+
```
123+
124+
#### Add jdbcType and typeHandler
125+
Edit mybatisCodeHelper.vm in globalconfig:
126+
```velocity
127+
#if($tool.newHashSet("java.lang.String").contains($column.type))
128+
#set($jdbcType="VARCHAR")
129+
#elseif($tool.newHashSet("java.lang.Integer","int").contains($column.type))
130+
#set($jdbcType="INTEGER")
131+
#else
132+
##other types
133+
#set($jdbcType="VARCHAR")
134+
#end
135+
$tool.call($column.ext.put("jdbcType", $jdbcType))
136+
```
137+
Then use in XML (ext is a map for custom properties):
138+
```xml
139+
#{$!{column.name},jdbcType=$!{column.ext.jdbcType}}
140+
```
141+
142+
#### Get Table Name, Field Name, Field Type, Schema Name
143+
```velocity
144+
Table name = tableInfo.obj.name
145+
Field name = column.obj.name
146+
Field type = $!tool.getField($tableInfo.fullColumn.get(0).obj.dataType, "typeName")
147+
Field Java type = column.type
148+
Schema name = ${tableInfo.obj.getParent().getName()}
149+
```
150+
151+
### Note: EasyCodeMybatisCodeHelper plugin is forked from https://github.com/makejavas/EasyCode, modified for MybatisCodeHelperPro compatibility and direct template-based code generation.

‎docs/generateByTemplate.md‎

Lines changed: 1 addition & 1 deletion
Original file line numberDiff line numberDiff line change
@@ -1,4 +1,4 @@
1-
## 使用模版来生成代码（插件3.1.9版本）
1+
## 使用模版来生成代码
22

33
### 从2025.1.1版本开始EasyCode-MybatisCodeHelper转为freemium模式,只有模版代码提示功能需要付费,其他功能比如预览，生成代码等都是免费的
44
